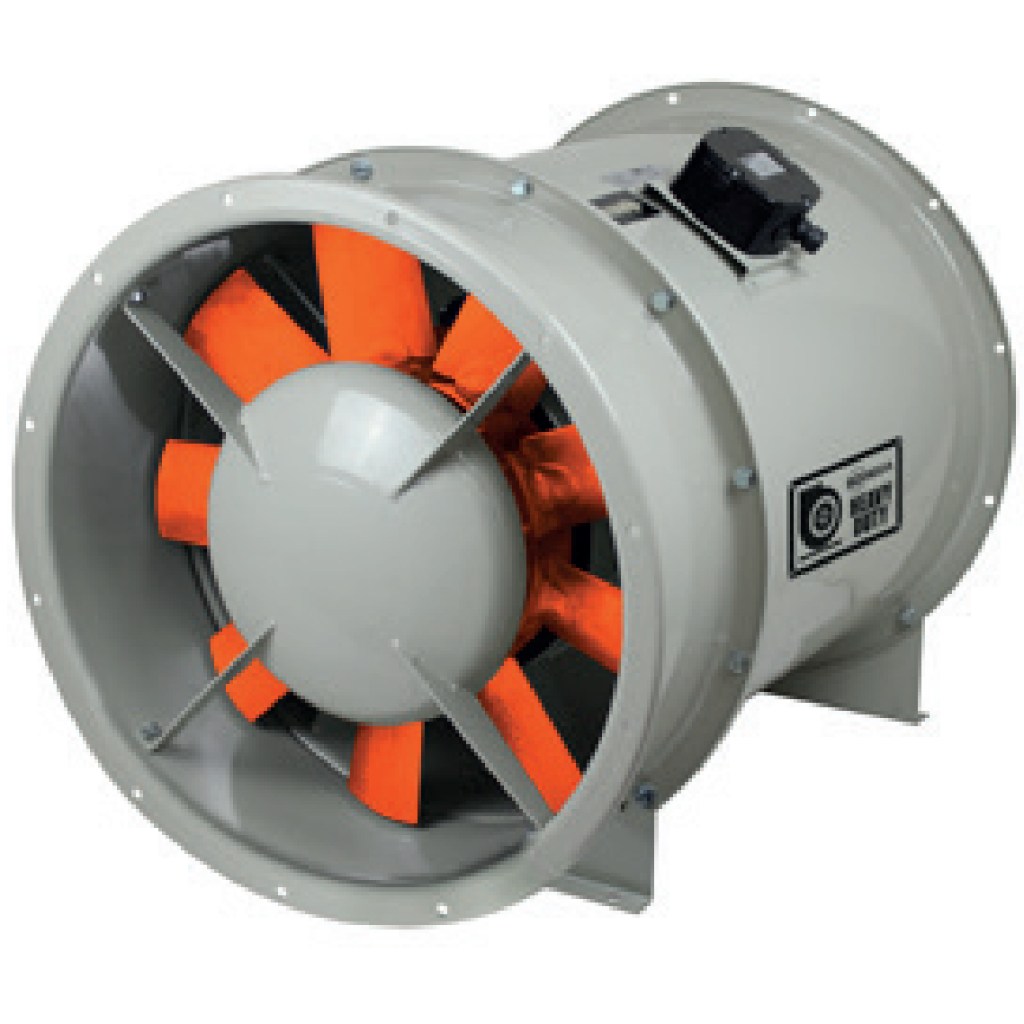

Sodeca HTP High pressure tubular axial extract fan
High pressure, extremely robust tubular axial fans, specially designed for mining installations or in applications with large load losses.
High aerodynamic performance guidelines for pressure gain.
Working temperature: -25 ºC +70 ºC.
Class F motors with ball bearings and IP55 protection.
Please indicate in the quote form the model and other information that may help us provide you with the most suitable product (flow rate, three-phase/single-phase, number of poles, dimensions, materials...).
Motor:
- Class F motors with ball bearings and IP55 protection.
- Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
- Three-phase with IE4 efficiency for power from 75 kW to 200 kW, except 2-speed and 8-pole.
- Working temperature: -25 ºC +70 ºC.
- Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
Fan:
- High performance, cast aluminium impeller.
- High aerodynamic performance guidelines for pressure gain.
- Large thickness tubular sheet steel casing.
- Motor support welded to the casing.
- Optimal surface protection by high quality steel.
- Electrical connection in external terminal box.
- Airflow direction from impeller to motor.
Finish:
High protection anti-corrosive steel, special primer and high quality paint for corrosive atmospheres.
On request:
- Hot dip galvanised steel construction.
- IP55 standard motors, ATEX and 2 speed motors.
- Total stainless steel construction.
