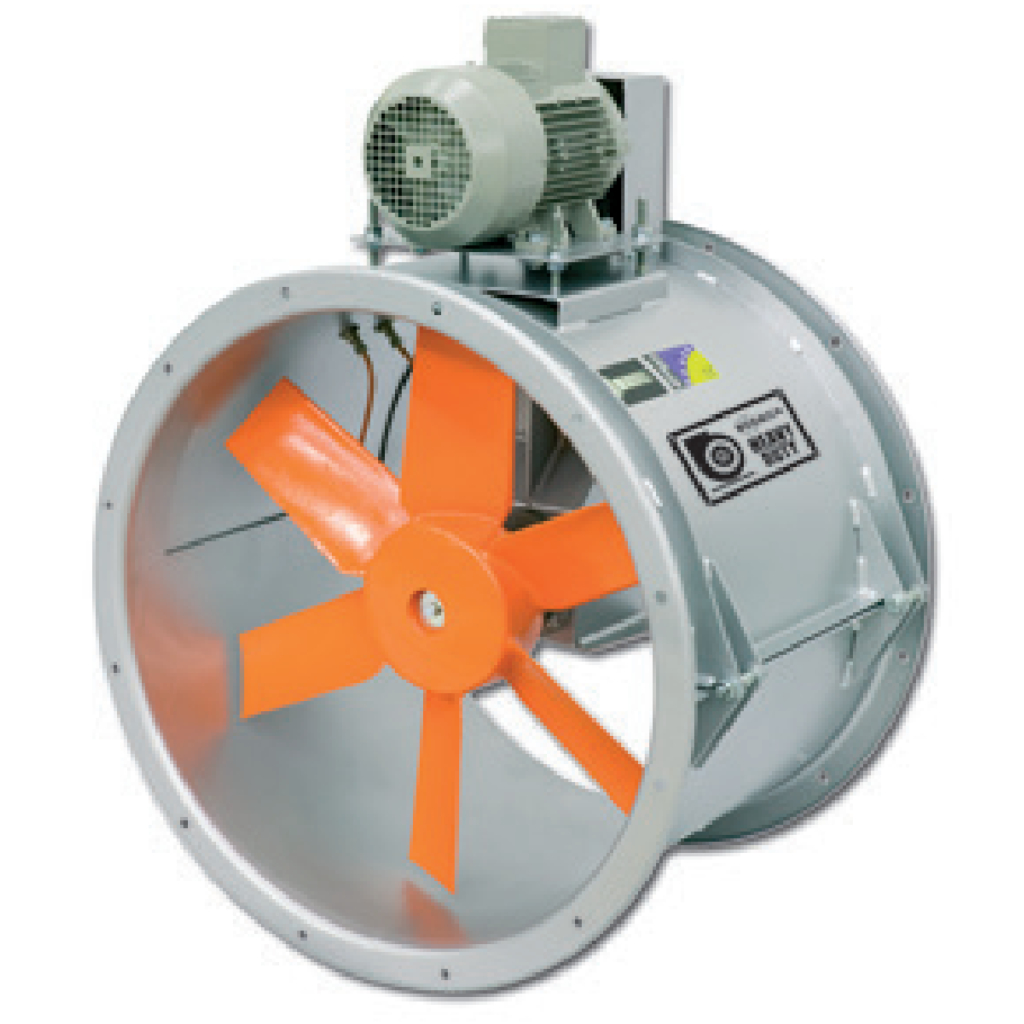

Sodeca HPX/SEC Axial fan
Fans designed to withstand extreme working conditions in ovens, dryers and other applications with high temperature and humidity
Cast aluminium impellers.
Temperature of the air to be carried: -25 ºC to +120 ºC.
Class F motors with ball bearings and IP55 protection.
Please indicate in the quote form the model and other information that may help us provide you with the most suitable product (flow rate, three-phase/single-phase, number of poles, dimensions, materials...).
Fan:
- Cast aluminium impellers.
- Large thickness tubular sheet steel casing with rotating cover.
- Temperature of the air to be carried: -25 ºC to +120 ºC.
- High quality bearings, with high temperature grease.
- Airflow direction from motor to impeller.
- Bearing support with grease nipples.
- External greasers in fan casing.
Motor:
- Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
- Class F motors with ball bearings and IP55 protection.
- Working temperature: -25 ºC +40 ºC.
- Single-phase 230 V 50 Hz and three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
Finish:
Anti-corrosive in anticaloric paint.
On request:
- 100% reversible impellers.
- Airflow direction from impeller to motor.
- Special windings for different voltages.
- Category 2 ATEX certification (see HPX/ATEX series).
