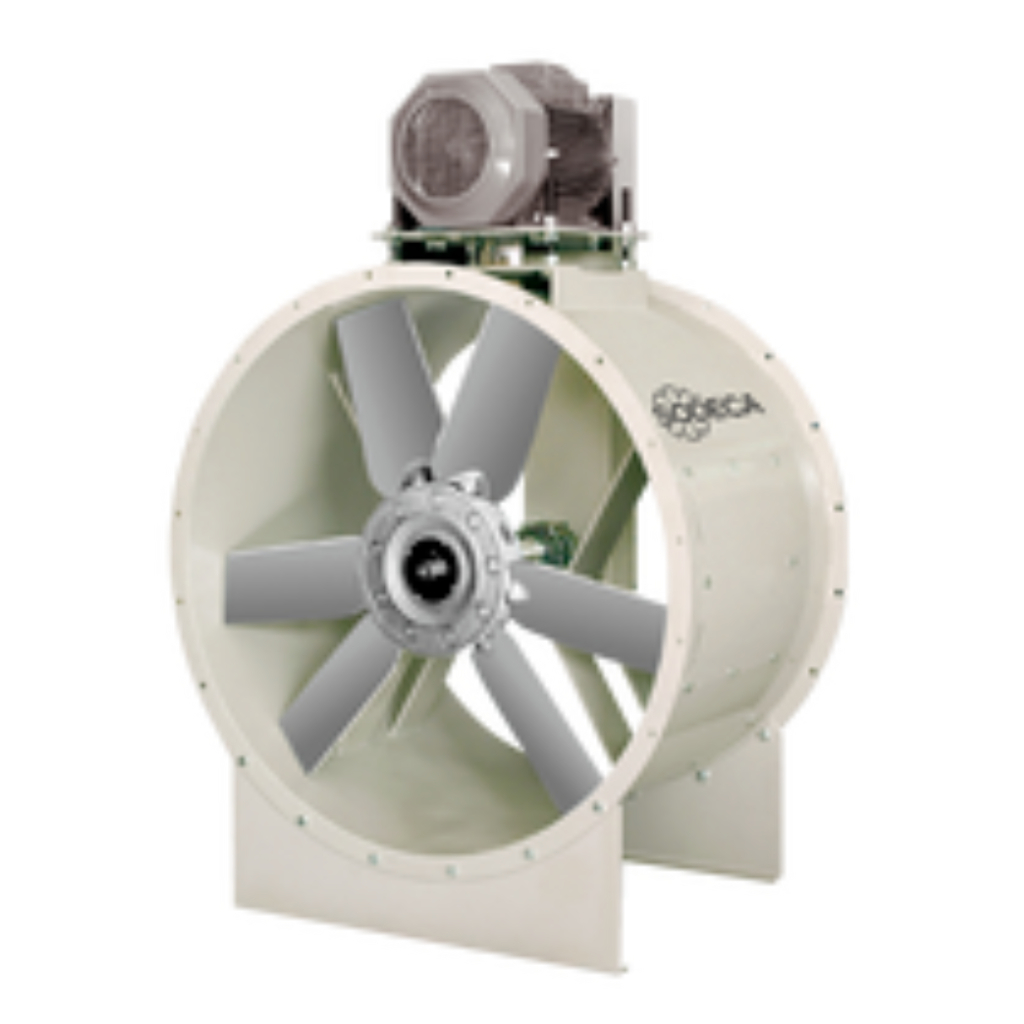

Sodeca HGTX Large diameter tubular axial fan
Tubular axial fans equipped with 6 or 9 blade aluminum propellers with various angles of inclination.
Impellers made of cast aluminium with 6 or 9 blades with adjustable angle of inclination.
Class F motors with ball bearings and IP55 protection.
Three-phase 230/400 V 50 Hz and 400/690 V 50 Hz
Please indicate in the quote form the model and other information that may help us provide you with the most suitable product (flow rate, three-phase/single-phase, number of poles, dimensions, materials...).
Fan:
- Tubular casing in sheet steel.
- Standard version in long casing, equipped with inspection hatch.
- Airflow direction from motor to impeller.
- Impellers made of cast aluminium with 6 or 9 blades with adjustable angle of inclination.
- Temperature of the air to be carried: -25 ºC to +120 ºC.
Motor:
- Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
- Working temperature: -25 ºC +50 ºC.
- Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
- Three-phase with IE4 efficiency for power from 75 kW to 200 kW, except 2-speed and 8-pole.
- Class F motors with ball bearings and IP55 protection.
Finish:
Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
On request:
- 100% reversible impellers.
- Airflow direction from impeller to motor.
- Special windings for different voltages.
- ATEX certified Category 2.
- 2 speed motors.
- The support feet are supplied as an accessory.
