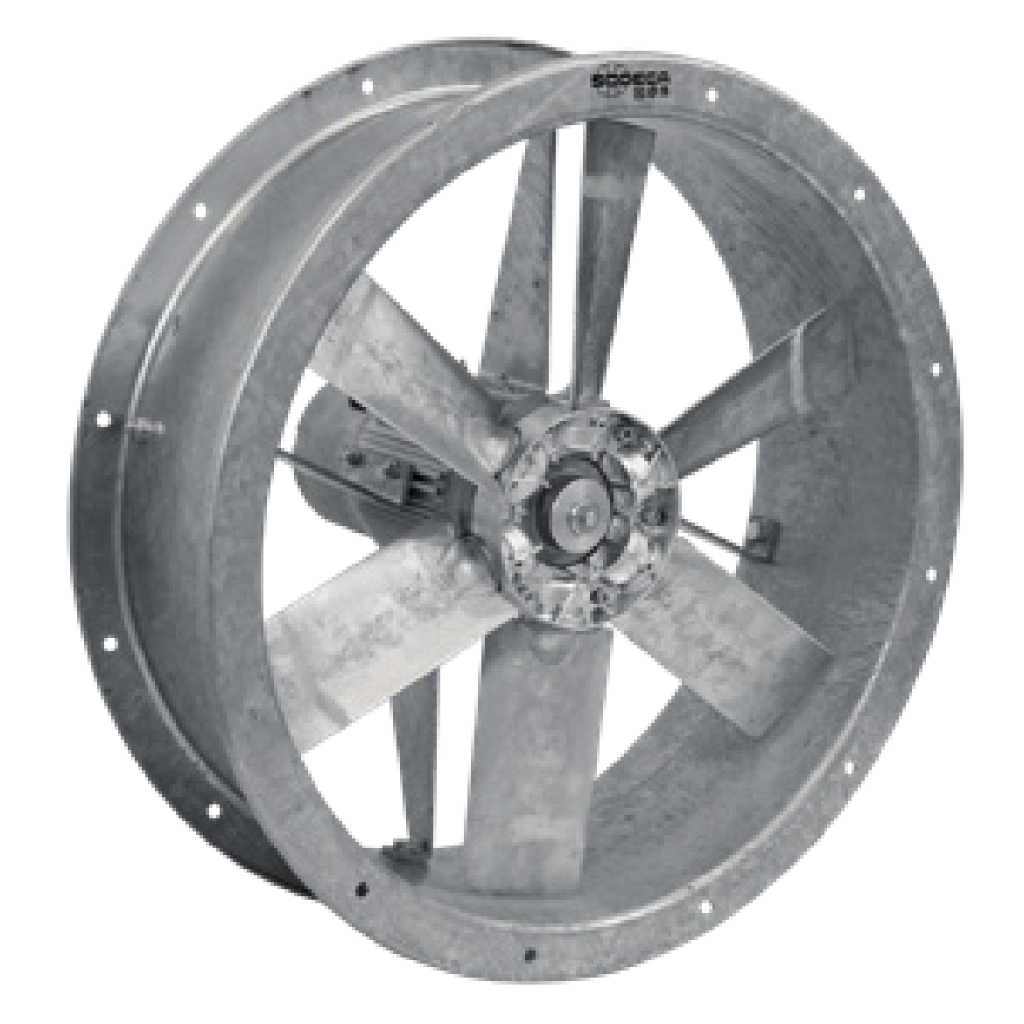

Sodeca HFW/EC Hot dip galvanised tubular axial fan
Hot-dip galvanised tubular axial fans, with EC Technology IE5 motor with integrated electronics, specially designed for high energy efficiency.
High efficiency EC Technology motors
AL version impeller made of cast aluminium.
Working temperature: -25 ºC +60 ºC.
Please indicate in the quote form the model and other information that may help us provide you with the most suitable product (flow rate, three-phase/single-phase, number of poles, dimensions, materials...).
Fan:
- AL version impeller made of cast aluminium.
- Airflow direction from motor to impeller.
- Hot dip galvanised tubular sheet steel casing.
- Support ring in sheet steel with double flange and cable glands for motor supply.
Motor:
- IE5 efficiency motors, class F and IP55 protection.
- High efficiency EC Technology motors with integrated electronics, regulated by 0-10 V or 4-20 mA.
- Working temperature: -25 ºC +60 ºC.
- Single-phase 220-277 V 50/60 Hz and three-phase 380-480 V 50/60 Hz.
EC CONTROL:
Supplied as an optional accessory. Control panel for ventilation systems with EC Technology motors with the electronics integrated in the motor itself. With the following characteristics:
- DAY/NIGHT: Double pressure setpoint adjustment according to time of day.
- CFC: Constant flow control.
- CPC: Constant pressure control.
- External sensor: Compatible with temperature, humidity, air quality or CO sensor.
- Equipment preconfigured in constant pressure mode with 100 Pa set point.
Finish:
Hot dip galvanised.
On request:
- Airflow direction from impeller to motor.
- Fibreglass reinforced polyamide PL version impellers.
- 100% reversible impellers.
