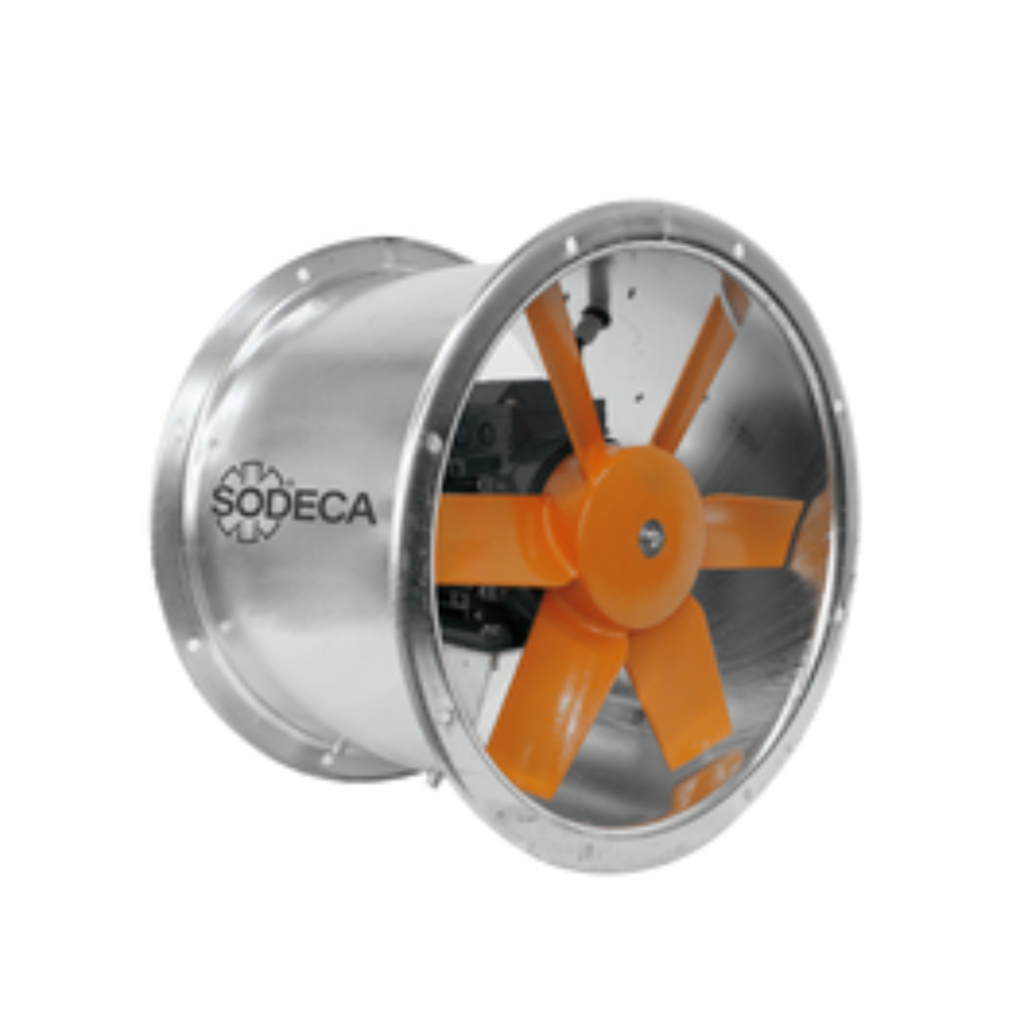

Sodeca HCT/MAR axial duct extractor fans
Tubular axial extractor duct fans for operation in marine environments, equipped with marine service motors.
Cast aluminium impellers.
With inspection hatch
Three-phase 230/400 V 50 Hz and 400/690 V 50 Hz
Fan:
- Extremely robust hot dip galvanised sheet steel tubular casing to intercalate in between ducts.
- Cast aluminium impellers.
- Airflow direction from motor to impeller.
- With inspection hatch.
Motor:
- Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
- Class F marine service motor with ball bearings and IP55 protection. Compliant with the non-essential naval service classification.
- Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
- Working temperature: -25 ºC +60 ºC.
Finish:
Hot dip galvanised anti-corrosive.
On request:
- Stainless steel construction.
- Special windings for different voltages and frequencies.
- ATEX construction for different categories.
- Motors with built-in PTC.
- Marine motors for naval applications, certified for essential service according to different classification entities (BV. DNV. LR).
