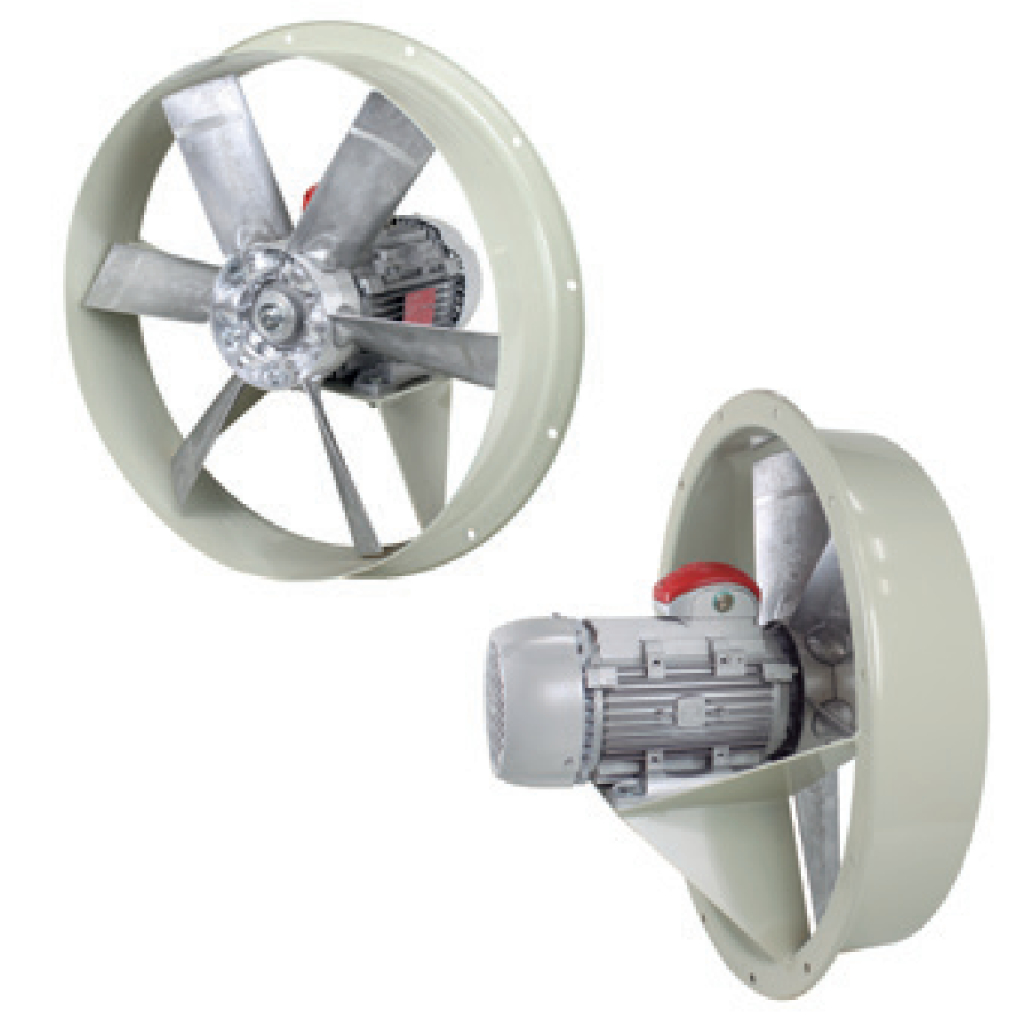

Sodeca HCH/SEC Axial fun
Fans designed with the best technology and experience to withstand extreme working conditions of up to 90 ºC in wood and ceramic drying barns
Working temperature: -10 ºC +90 ºC and 100% relative humidity.
Support ring in sheet steel.
IP-55 protection
Please indicate in the quote form the model and other information that may help us provide you with the most suitable product (flow rate, three-phase/single-phase, number of poles, dimensions, materials...).
Fan:
- Cast aluminium impellers.
- Support ring in sheet steel.
- Airflow direction from motor to impeller.
Motor version 90 ºC 100% RH:
- Motors with external ventilation.
- Class H motors. With ball bearings specially designed for high temperatures, IP-55 protection.
- Three-phase 230/400 V 50 Hz (up to 3 kW) and 400/690 V 50 Hz (powers greater than 3 kW).
- Working temperature: -10 ºC +90 ºC and 100% relative humidity.
Finish:
- INOX version, shot blasted finish.
- Anti-corrosive finish in polyester resin, polymerised at 190 ºC, after degreasing with phosphate-free nanotechnology treatment.
On request:
- Airflow direction from impeller to motor.
- Any HCH series model can be converted to HCH/SEC.
- Support ring in AISI-304 or AISI-316.
- Flared ring in the reversible version.
- 100% reversible impellers.
- Special windings for different voltages.
