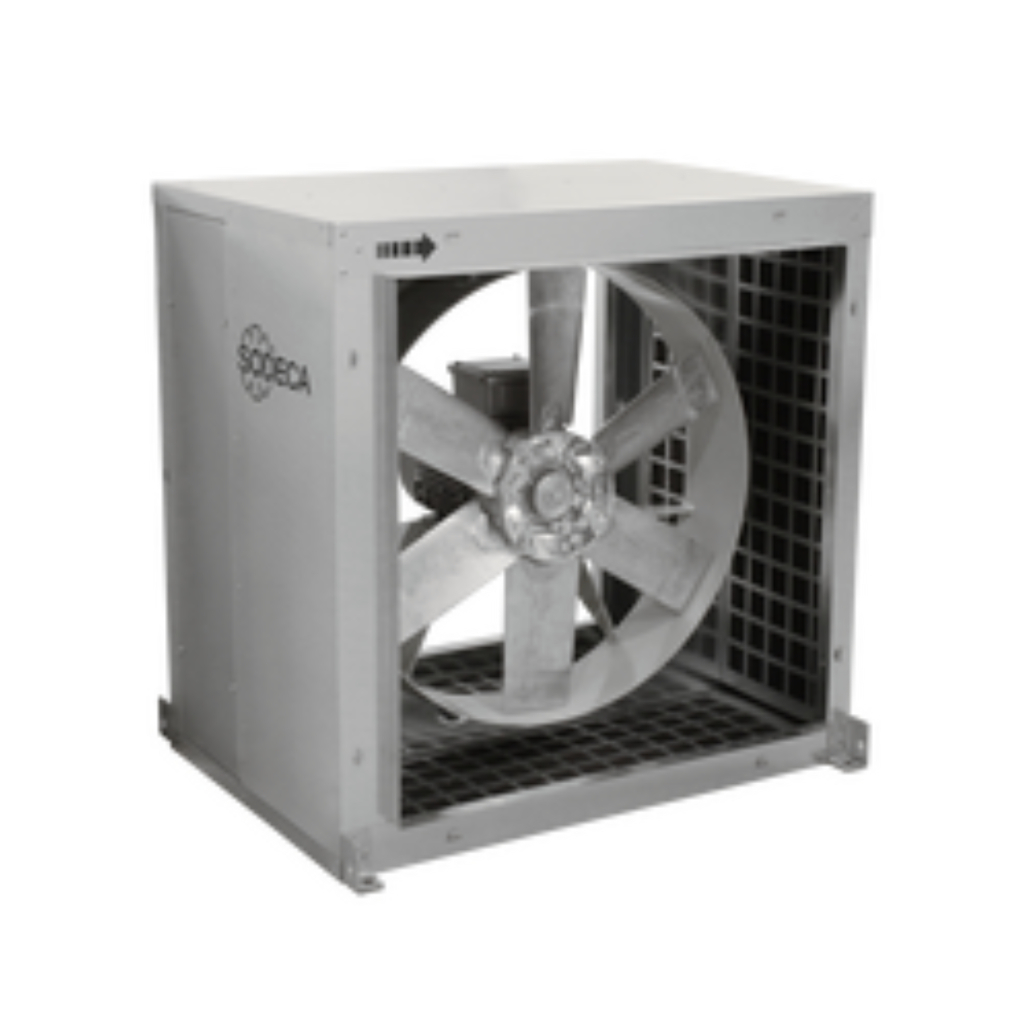

Sodeca CJHGT Large diameter tubular axial fan
Tubular axial fans equipped with 6, 9 or 12 blade aluminum propellers with various angles of inclination.
Class F motors with ball bearings and IP55 protection.
Working temperature: -25 ºC +50 ºC.
Fan with tubular sheet steel casing.
Fan:
- Fan with tubular sheet steel casing.
- Airflow direction from motor to impeller.
- Galvanised sheet steel structure with thermal insulation and acoustic insulation.
- Impellers made of cast aluminium with 6, 9 or 12 blades with adjustable angle of inclination.
- Variable angle impeller made of cast aluminium.
Motor:
- Three-phase with IE4 efficiency for power from 75 kW to 200 kW, except 2-speed and 8-pole.
- Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
- Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
- Class F motors with ball bearings and IP55 protection.
- Working temperature: -25 ºC +50 ºC.
Finish:
- Fan: Anti-corrosive in polyester resin polymerized at 190 ºC, after degreasing with phosphate-free nanotechnological treatment.
- Box: Galvanised sheet steel.
On request:
- 2 speed motors.
- 100% reversible impellers.
- Airflow direction from impeller to motor.
- Special windings for different voltages.
- ATEX certified Category 2.
